Semiremorcă platforma Fliegl 3-Achs Standard Plateau Auflieger nouă

Description: Flatbed open
Functionality: fully functional
Rental: is possible
Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland
Farbe: original
Achsenkonfiguration: 3 axles
*Save on Transport Costs!
Nwo Dozmtc Asp Dy Axjk

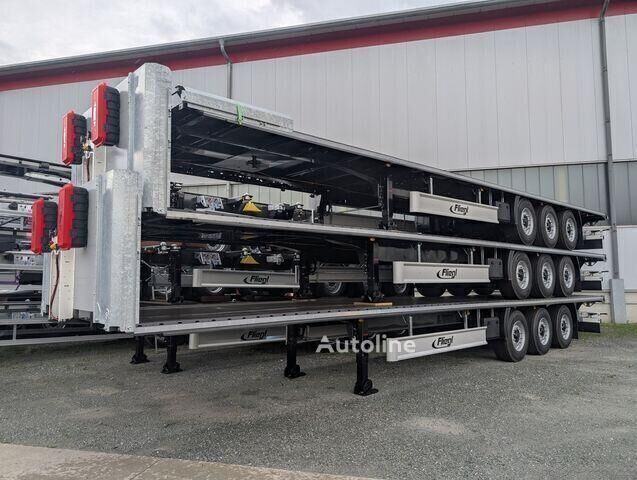

Up to three platform trailers can be delivered as a space-saving 3-unit stack. Simply assemble the front wall yourself after delivery and benefit from significantly reduced transport costs
*Customized Transport Solution
Configure your Fliegl trailer to your exact requirements. The vehicle shown is an example. Production and equipment are tailored individually to customer specifications
#Chassis
High-strength steel welded chassis
Fifth wheel with replaceable 2" kingpin
Angled outer frame with Load-Lock profile for easy strap attachment
24 t two-speed landing gear
single-side operation
semi-round feet with load compensation
Approx. 1,930 mm rear swing clearance
Rear access ladder
Side door retainers
2 wheel chocks with holders
Aluminium side underrun protection
Galvanized rear underrun protection
Quarter fenders in front of and behind axle assembly
Anti-spray mud flaps (EC compliant)
Rear impact protection
2 spare wheel carriers incl. mounting kit
1 spare wheel with steel rim

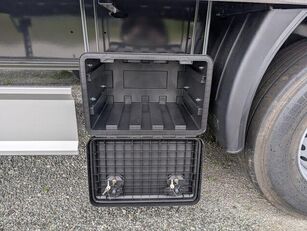

Lockable plastic toolbox
#Axles & Suspension
BPW disc brake axles (430 mm)
Laser-aligned axle and suspension system for reduced tyre wear and fuel consumption
Automatic lift axle with forced lowering and traction aid (activated by pressing the brake pedal 3 times)
#Braking System
Dual-line air brake system
Colour-coded air lines for easier servicing
Spring parking brake
2 interchangeable air couplings at front (without connecting lines)
EBS electronic braking system with front EBS socket
Raise/lower valve
Vehicle Stability System (RSS)
Suitable only for tractors equipped with ABS
#Tyres
385/65 R22.5 tyres
Steel rims
factory silver
#Electrical System
24 V lighting system
Multi-chamber rear lights
LED side marker lights
2 white front position lights
2 red/white rear outline marker lights
2 × 7-pin front sockets (without connecting cables)
#Loading Platform
Approx. 30 mm phenolic plywood floor
8 longitudinal support beams
Forklift axle load up to 7,900 kg
Steel chequer plate reinforcement at rear
#Front Wall
Approx. 1,350 mm aluminium front wall
Heavy-duty steel corner posts
Front curtain release system
Crash Blocker with integrated steel impact protection
#Registration & Certificates
German registration
EC type approval (2007/46/EC)
24/7 service hotline
Optional delivery as a secured 3-unit transport stack
Fliegl body strength certificate according to EN 12642 XL
ECE R70 rear warning plate
